Bauar t gepruft

Sicherheit

egel ma

ge

od

o  s

be wac

g

UL60950-1

www. tuv.com

UL508

ID 2000000000

EN61558

IEC60950-1

HDR-60-5

HDR-60-12

HDR-60-15

HDR-60-24

HDR-60-48

DC VOLTAGE

5V

12V

15V

24V

48V

RATED CURRENT

6.5A

4.5A

4A

2.5A

1.25A

CURRENT RANGE

0 ~6.5A

0 ~ 4.5A

0 ~ 4A

0 ~ 2.5A

0 ~ 1.25A

RATED POWER

32.5W

54W

60W

60W

60W

RIPPLE & NOISE (max.) Note.2

80mVp-p

120mVp-p

120mVp-p

150mVp-p

240mVp-p

VOLTAGE ADJ. RANGE

5.0 ~ 5.5V

10.8 ~ 13.8V

13.5 ~ 18V

21.6 ~ 29V

43.2 ~ 55.2V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

500ms, 50ms/230VAC

500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

30ms/230VAC

12ms/115VAC at full load

VOLTAGE RANGE

85 ~ 264VAC (277VAC operational )

120 ~ 370VDC  (390VDC operational )

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

85%

88%

89%

90%

91%

AC CURRENT (Typ.)

1.2A/115VAC

0.8A/230VAC

INRUSH CURRENT (Typ.)

COLD START 30A/115VAC

60A/230VAC

OVERLOAD

Note.4

105 ~ 160% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

14.2 ~ 16.2V

18.8 ~ 22.5V

30 ~ 36V

56.5 ~ 64.8V

Protection type : Shut down o/p voltage, re-power on to recover

WORKING TEMP.

-30 ~ +70   (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85   , 10 ~ 95% RH non-condensing

TEMP. COEFFICIENT

±0.03%/   (0 ~ 50

) RH non-condensing

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

OPERATING ALTITUDE

2000 meters

OVER VOLTAGE CATEGORY

Ⅲ; According to EN61558, EN50178,EN60664-1, EN62477-1;altitude up to 2000 meters

SAFETY STANDARDS

UL60950-1, UL508, TUV EN61558-2-16, IEC60950-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to TUV EN60950-1

WITHSTAND VOLTAGE

I/P-O/P:4KVAC

ISOLATION RESISTANCE

I/P-O/P:100M Ohms / 500VDC / 25

/ 70% RH

Parameter

Standard

Test Level / Note

Conducted

EN55032(CISPR32), CNS13438

Class B

EMC EMISSION

Radiated

EN55032(CISPR32), CNS13438

Class B

Harmonic Current

EN61000-3-2

Class A

Voltage Flicker

EN61000-3-3

-------

EN55024, EN55035, EN61000-6-2, EN61204-3

Parameter

Standard

Test Level /Note

ESD

EN61000-4-2

Level 3, 8KV air; Level 2, 4KV contact, criteria A

Radiated Susceptibility

EN61000-4-3

Level 3, criteria A

EMC IMMUNITY

EFT/Burest

EN61000-4-4

Level 3, criteria A

Surge

EN61000-4-5

Level 4,2KV/L-N, criteria A

Conducted

EN61000-4-6

Level 3, criteria A

Magnetic Field

EN61000-4-8

Level 4, criteria A

Voltage Dips and interruptions

EN61000-4-11

＞95% dip 0.5 periods, 30% dip 25 periods,

＞95% interruptions 250 periods

MTBF

927.6K hrs min.

MIL-HDBK-217F (25

)

DIMENSION

52.5*90*54.5mm (W*H*D)

PACKING

190g;60pcs/12.4Kg/0.97CUFT

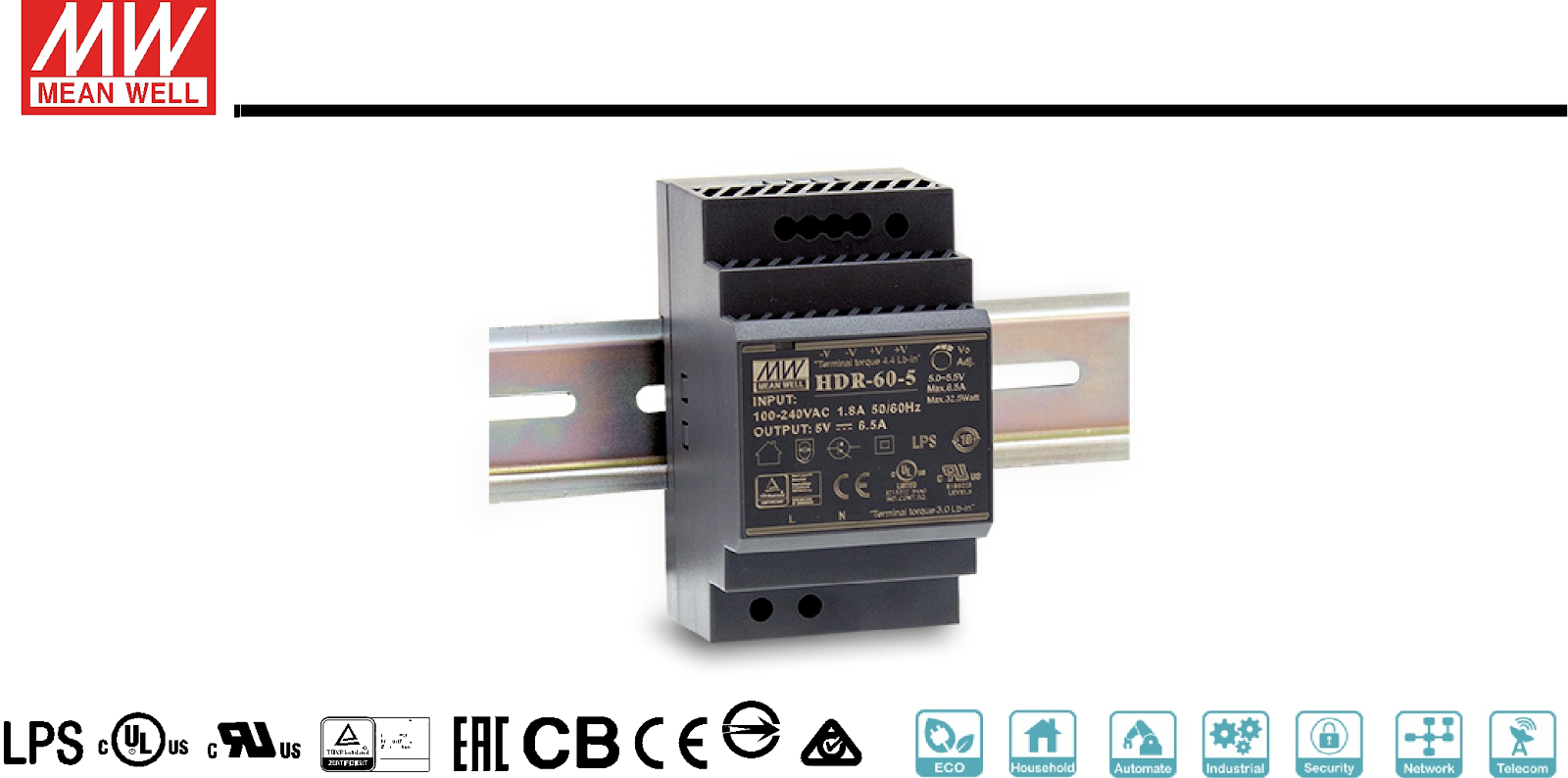

60W  Ultra Slim Step Shape DIN Rail

HDR-60 series

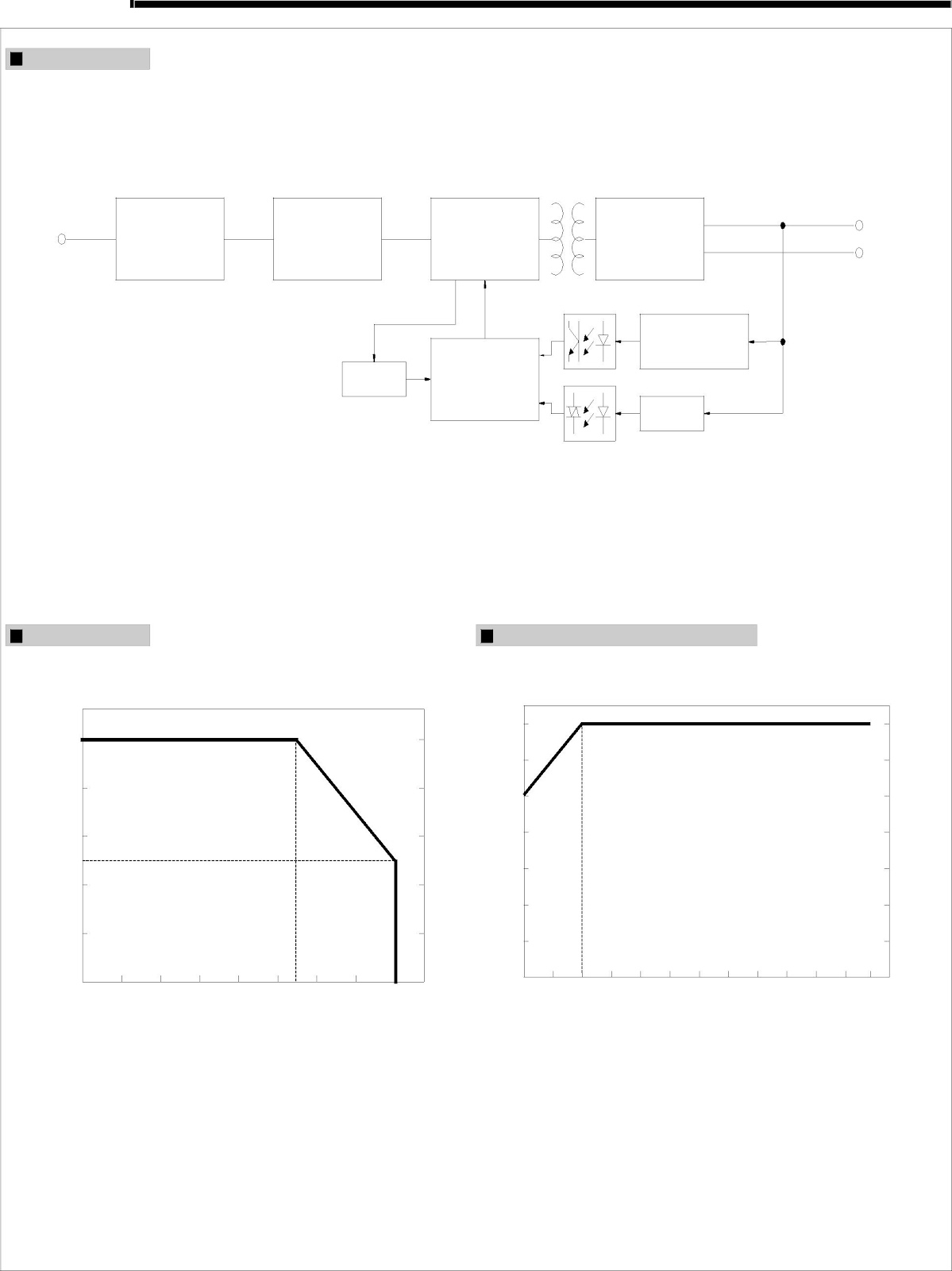

Block Diagram

I/P

EMI

RECTIFIERS

POWER

RECTIFIERS

+V

&

&

FILTER

SWITCHING

-V

FILTER

FILTER

DETECTION

PWM

CIRCUIT

O.L.P.

CONTROL

O.V.P.

Derating Curve

Output Derating VS Input Voltage

100

100

90

80

80

60

70

(%)

50

(%)

60

40

LOAD

LOAD

50

20

40

-30

0

10

20

30

40

50

60

70

(VERTICAL)

85

95

100

115

120   140 160   180

200

220   240

264

277

(operational)

AMBIENT TEMPERATURE (

)

INPUT VOLTAGE (VAC) 60Hz

File Name:HDR-60-SPEC

2018-01-12

90

63.65

45.15

Pin No.

Assignment

Pin No.

Assignment

1,2

-V

5

AC/L

3,4

+V

6

AC/N
